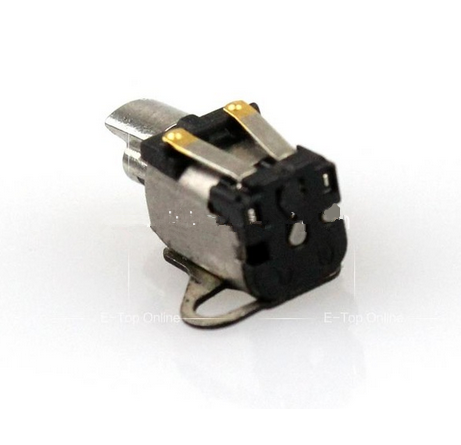

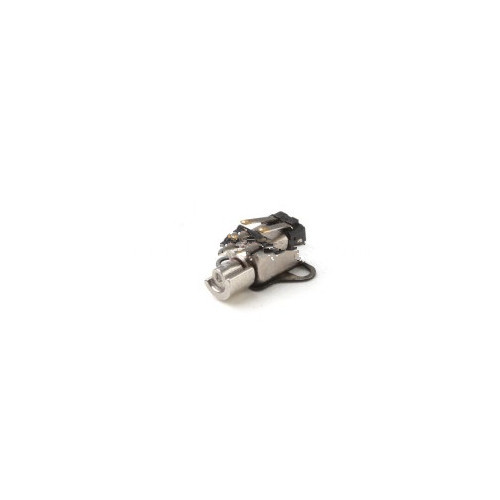

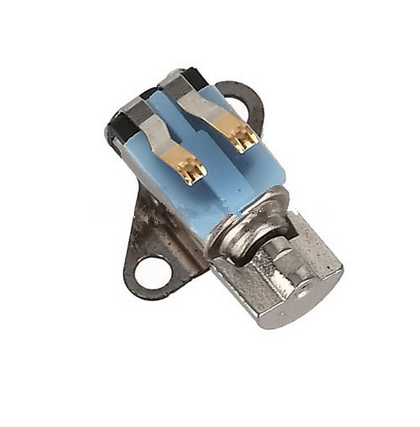

Vibrator Motor Repair Parts for iPhone 4

Weight: 3g

Material: Metal Alloy

New and original Parts for iPhone 4 vibrator replacement

Compatible: for iPhone 4

Package Include: 1x Vibrator Motor replacement

Vibrator Motor for iPhone 4 function

This is original Parts for iPhone 4, it is used to replace the damaged Vibrator.

8 Steps to repalce Vibrator Motor for iPhone 4 parts
Step 1 - Rear Panel
Before disassembling your iPhone, be sure it is powered off.
Your iPhone 4 rear cover may have either two #000 Phillips screws or Apple's 5-Point "Pentalobe" screws. Check which screws you have, and ensure you also have the correct screwdriver in order to remove them.
Remove the two 3.6 mm Pentalobe or Phillips #000 screws next to the dock connector.
Step 2
Push the rear panel toward the top edge of the iPhone.
Step 3
Pinch the rear panel with your fingers and lift it away from the iPhone. Alternatively, use a small suction cup.
Step 4 - Battery
Remove the single 2.5 mm Phillips screw securing the battery connector to the logic board.
Step 5
Use a plastic opening tool to gently pry the battery connector up from its socket on the logic board.
Remove the metal clip covering the antenna connector.
Step 6
Use the clear plastic pull tab to gently lift the battery out of the iPhone.
Remove the contact clip from the iPhone.
Step 7 - Vibrator
Remove the following two screws securing the vibrator to the inner frame: 6mm, 1.4mm.
Step 8
Remove the vibrator from the inner case


Warranty

1.    We 100% test all Screens and other Repair Parts before shipping. We ensure all our screens are good quality and work perfectly!
2.    Please test all LCD Screens after package reach you. If there are any defects, please contact us for exchange. We exchange for all no-installed screens.
3.    We don`t exchange for installed screen. Please never install any screens before testing them. Wrong operation always causes damage to LCD screens.
4.    Please ship defective LCD back to us. After get it, we will reship it immediately. Customers pay return cost, we pay reship cost.
5.    Please pack the LCD well, If the return LCD is scratched or crashed because of bad packing, we will refuse exchange.
6.    All our products have 1 year warranty before installation. If you not satisfy with the quality, you can return the product and ask refund in 12 months.

Looking for ideal iPhone 4 Vibrator Parts Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the iPhone 4 Vibrator Motor are quality guaranteed. We are China Origin Factory of iPhone 4 Vibrator Replacement. If you have any question, please feel free to contact us.
