- KOMINI LCD Screen Laminating Machine
- Category：iPhone repair tool
- Model：
- View：2126
KOMINI LCD Screen Laminating Machine
Hotline: 86-755-82965358
Fax: 86-755-82965060
Email: admin@anandaen.cn
Detail

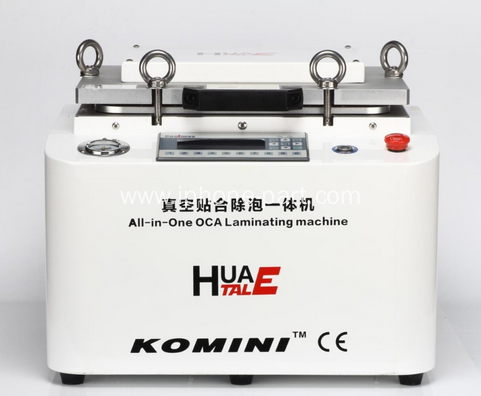

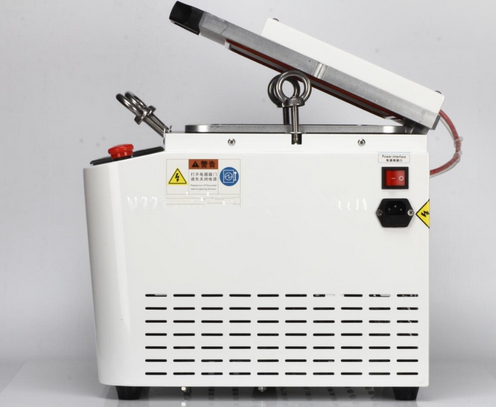

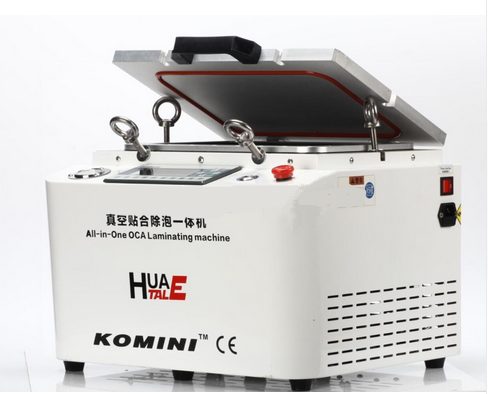

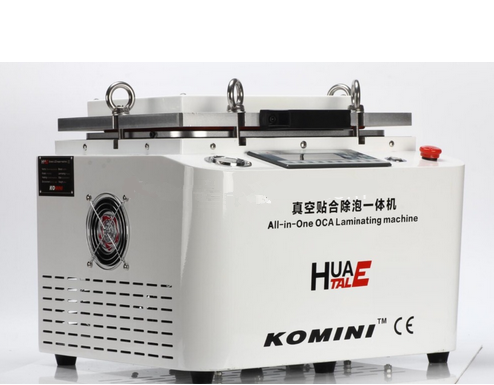

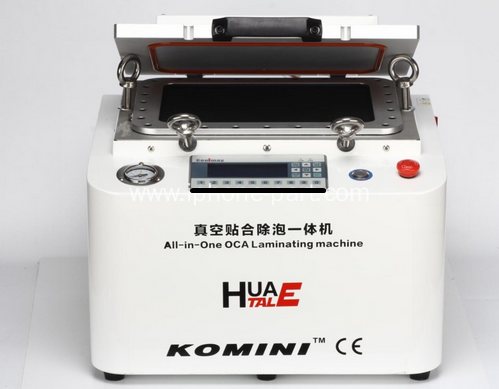

KOMINI LCD Screen Laminating Machine
LCD Screen Laminating machine + bubble remover + Vacuum + Air Compressor + Motor
it is the 2nd generation iPhone LCD Screen laminating machine. It contains the Laminating machine, bubble remover, vacuum, Air compressor and the Moter, all built-in design. With this all-in-one machine, it is easy to refurbish and assemble a new iPhone screen, without other machines. This LCD laminating machine is special used to assemble iPhone LCD to digitizer, and remove the bubble perfectly.
All-in-one LCD Laminating machine parameter
- Brand: KOMINI
- Volt: 220V/110V
- Weight: 75kg
- Serie: KO Serie
- Model: Komini
- System control: PLC smart touch
- Power: Slective AC 110V, AC 220V, 1000W
- Operation Air pressure: 0.1 - 0.2 Mpa, Suggest 0.15 Mpa (1.5kg/cm2)
- Working environment: 20 to 30 degree, clean and no-dust.
- Heating method: Constant temperature
- Temperature control: 30 to 45 degree
-
Laminating: flat type laminationg
- Applicable size: below 12 inch
- Plateform size: 280*200mm
- Equipment size: 460*410*380mm
- Working efficiency: 8pcs/10minutes (iPhone 4)
- Net weight: 37kg
- Gross weight: 47kg
-
With English use manual
All-in-one LCD Laminating machine Feature
- No modeules needed, no debubbling process need
-
It can laminate different model LCD or thickness in parallel.
-
Fit for all touch screen LCD under 12 inch
-
All in one machine, no need bubble remover, press to boot, easy operation
-
Smart constant pressure, automatic shift to the lamination and debubbling mode
-
PLC human machine interaction control system controls accurate time and temperature, one button finish laminating and bubble removing work.
-
Oil water self cycle system, reduce the problem of the solenoid, rise the working year of machine
- One button for laminating and bubble removing, no need other operation
online watch: LCD laminating machine use guide
7 inch and smller cellphone. (don't support iPad 2/3/4/Air)
All-in-one LCD Laminating machin Compaibe
