- Leagoo S8 4g phablet 5.72 Inch Android 7.0
- Category：LEAGOO
- Model：
- View：1493
Detail
LEAGOO S8 4G Phablet Android 7.0 5.72 inch 3GB RAM 32GB ROM 13.0MP + 2.0MP Dual Rear Cameras Fingerprint Scanner.
Selling point

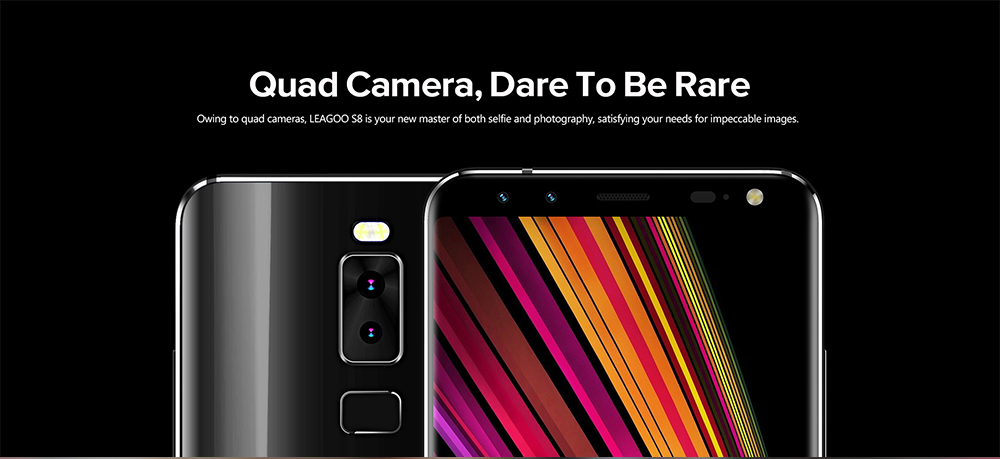

1.Quad-Cam: Front: 8MP+2MP & Rear: 13MP+2MP;
2. Curved display screens from front to rear./Full curved display screens.
3. Ultra narrow frame of 1.4mm;
4.Metal unibody;
5. HD+ 18:9 display;
6. Rear fingerprint;
leagoo s8 spec
. Product overview
Description
Remarks
Product
overview
Internal project name
L5701
LEAGOO Model
S8
Product positioning
High-end
hyperboloid metal 4G smartphone with Quad-Cam
Dual 4G Dual Standby
Model style
PDA
Dimensions (mm)
153.5x70.7x9.1mm
Promotion
Height：8.8mm
Sales Point
1.Quad-Cam:
Front: 8MP+2MP & Rear: 13MP+2MP;
2. Curved display screens from front to rear./Full curved display
screens.
3. Ultra narrow frame of 1.4mm;
4.Metal unibody;
5. HD+ 18:9 display;
6. Rear fingerprint;
. Hardware
configuration
Description
Remarks
CPU
Model
MT6750T
Feature
Octa core
Frequency: 1.5GHz
Framework
ARM Cortex-A53
64-bit
Technology
28nm
GPU model
Mali-T860 MP2 650MHZ
Video encode
1080P30fps,
H.265/H.264
Video decode
1080P30fps,
H.265/H.264
Network
TDD/FDD/WCDMA/TD/GSM
frequency
2G(GSM)/3G(TD-SCDMA)3G(WCDMA)/4G(FDD-LTE)/4G(TDD-LTE)
Frequency 1 (L5701-E)
GSM/WCDMA/FDD-LTE/TDD-LTE(Eurasian/4+3+6+1)
GSM:
850/900/1800/1900MHz
WCDMA: 850/900/2100MHz
FDD-LTE: Band 1/3/5/7/8/20, TDD：B40
Frequency 2 (L5701-TW)
GSM/WCDMA/FDD-LTE(Taiwanese/2+1+6)
GSM: 900/1800MHz
WCDMA: 2100MHz
FDD-LTE:
B1/3/7/8/28a/28b
LTE baseband
CAT6 (Mainboard support VoLTE)
Max
Download 300Mbps, Max Upload 50Mbps
3G
Support HSPA+
DC-HSPA+
R8 42/11Mbps
EDGE/GPRS
Support
EOS
300/300V
ESD
Touch 6KV
For finished phone:
required by Air: 12KV, Touch: 8KV;
Storage
Memory Type
ROM 32GB+RAM
3GB(Standard)
Support Maximum
Memory 4+64GB
T-flash card
Support
Maximum Extended
Storage 64GB (Promotion: Max
extended stprage:128GB)
Card slot type
1 Micro SIM+1 Nano
SIM or 1 Micro SIM+1 TF Card
Hardware features
GPS
GPS,
bluetooth, FM, WIFI, Four in one chip: MT6625L
GPS features LNA-low
noise amplifier, enhance GPS, support GPS+Beidou
WIFI
802.11b/g/n(11M~350M
bit/s), 2.4G, mainboard also support 5G WIFI
Bluetooth
Bluetooth 4.1, Low power consumption
FM
OTG
Support
Supports reverse
charging
Hall switch
Support
HotKnot
N/A
Infrared remote control
N/A
G-sensor
Support(triple-way
sensor)
Proximity sensor
Support, two in one chip
Ambient light senor
The compass (magnetic)
Support
Heart rate detector
N/A
Gyroscope
N/A
NFC
N/A
Wireless charge
N/A
Rapid Charge
5V=2A Quick Charge
LQC V2.0
Sound Amplifier
External Class K
speaker amplifier, max. support output power of 1.5W

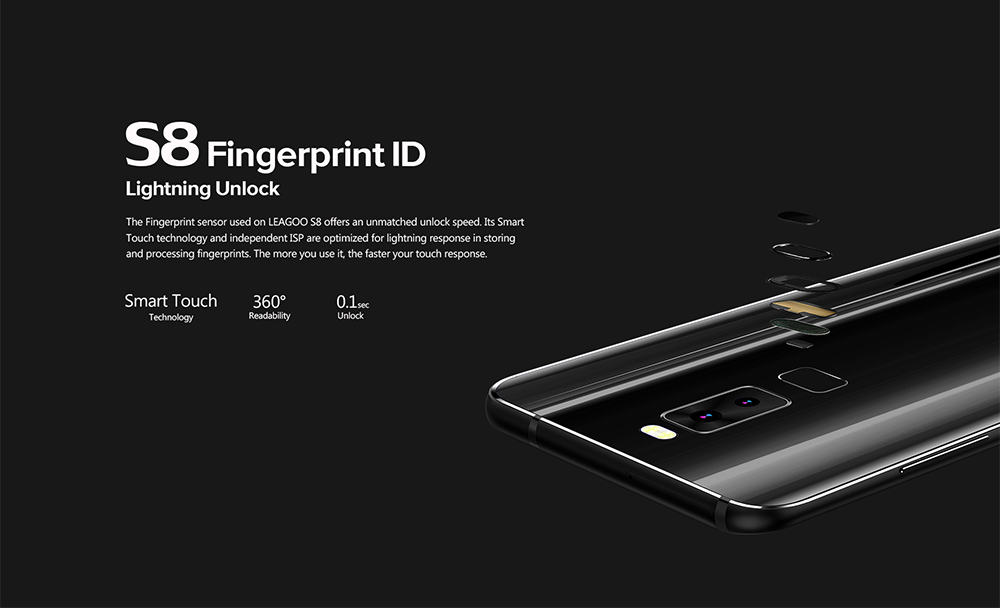

Fingerprint ID
Chipset
MicroArray A096N
Rear fingerprint
Cover material
High Light Coating Plate Cover
Metal ring
With metal ring
Response speed
<150ms
Identification angle
360°
Touch sensor type
Capacitance touch
sensor
Resolution
96×112 @ 508dpi
Display
Size & technology
5.72'' HD+ IPS
Resolution
1440*720（18：9）
Pixel density
282ppi
Effective Area
120.96*68.04mm
Lightness
500
Colour gamut
>85%
Contrast
1500:1
Touch panel
Panel technology
G+FF, Five points touch
IC
IC：LU3102
Material
1.3mm Asahi Glass,
hyperboloid, hardness 6 ~ 7H, with Anti-fingerprint oil
Sensor technology
Yellow Light
technology, 1.4mm ultra narrow frame
Fitting method with Display
Full lamination
Camera
Front Camera
Sensor
OV8856, 8MP FF
Angle
for Main Cam:＞ 80°，Size for Main Cam: 6.5*6.5mm
Sensing area
1/4 inch
Pixel area
1.12um*1.12um
Frame rate
3264*2448; 30fps
Aperture
FNO:2.0
Optical Image Stabilization
N/A
Autofocus
N/A
Lens
4P
Flash led
Support
4500K high light single
flash(120lm@500mA);Real Soft light Selfie;
Sub camera
2MP, GC2385, 3P lens
Rear
Camera
Sensor
Sony:IMX258, 13MP AF
Chipset to be confirmed
Sensing area
1/3.06 inch
Pixel area
1.12μm*1.12μm
Frame rate
4632*3480: 30fps
Aperture
FNO:2.0
Optical Image Stabilization
N/A
Autofocus
Support
lens
5P
Flash led
Dual flash
Sub camera
2MP, GC2385, 2P lens
Buttons
Power button
Support
CNC+TPU
Volume button
Support
CNC+TPU
Shutter button
N/A
Home button
Virtual key in the
Display Area
Menu button
Virtual key in the
Display Area
Return button
Virtual key in the
Display Area
Electric acoustic devices
Speaker
BOX
1511,Triple-magnetic
Motor
Flat
type 0827
Receiver
Shrapnel
type 1206
Mic
Silicone microphone
Notify light
Support(Same as
breathing light)
Buttun LED
N/A
Breathing light
Support (Red &
Green )
Port
Headphone port
3.5mm Standard
headphones/US standard
Charging port
Micro 5pin(With Steel
Sheet)
Battery
Typical Capacity
2940mAh
Fully charge and discharge frequency
300 times
Material
High density High
pressure li-polymer battery
Rated voltage
3.85V
Norminal voltage
4.4V
Discharge coefficient
0.2C
Battery density ratio
530WH/L
Standby time
To be comfirmed
Actual usage related to the
local network signal condition
Talk time
To be comfirmed
Housing
Housing structure
Undetachable battery
cover
Housing material
Zinc alloy mold injection + CNC+PC+ Composite board
Housing color
Dazzle
Black, Dazzle Blue
. Software function
Description
Remarks
System
function
Operating system
Android 7.0
64 bits
UI system
Orignal Goole Style
LEAGOO OS4.0
Smart awake
Support
FOTA upgrade
Support
Supported languages
Japanese,
Chinese (Traditional), Chinese (Simplified), Chinese (Hong Kong), Indonesian,
Malaysian, Catalan, Czech, Danish, Portuguese, Roman, Slovak, Slovenian,
Finnish Language, Swedish, Vietnamese, Turkish, Greek, Arabic, Urdu, Hebrew
(Israel), Armenian, Ukrainian, Serbian, Russian, Kazakh, Bulgarian, French,
Filipino, Spanish (United States), Spanish, English (UK), English (United
States), Estonian, German (Swiss), German (Austria)
Entertainment features
Video playback
Support AVI, 3GP, MP4, WMV,
RMVB, MKV, MOV, ASF, RM, FLV and other video formats, up to 1080p / 30fps
Video produce
Highest support 1080p@30fps video shooting
Audioplayer
Support MP3, M4A, AAC, MKA,
AMR And other video formats / supports lossless format：ALAC(Apple
Lossless), FLAC, APE, WAV
Graphic format
Support JPEG, BMP,
GIF,PNG etc.
Game
Support
Users are free to
download and install
Applications
Support
Users are free to
download and install
. Accessories
Description
Remarks
Standard accessories
Battery
Built-in battery*1
Earphone
Standard(A+)/White/3.5mm
US Standard in-ear mode
Data cable
USB
2.0A(White)
micro
USB/ support rapid charging
OTG cable
N/A
Charger
USB
5V/2.0A/CE/White
Three-layer protective film
Yes(Stick
to the cover before delivery)
Rear Cover protective film
Yes(Stick to the cover before delivery)
Packing box, manual, warranty card
Titan series style
Optional
accessories
Protective
case
TPU
case
PE
packaging set
Leather case
N/A
Tempered glass protective film
N/A
. Carton size
Description
Remarks
Carton
size
Unit weight
(including 1 battery)
To be comfirmed
Full w/v
Packing w/v
