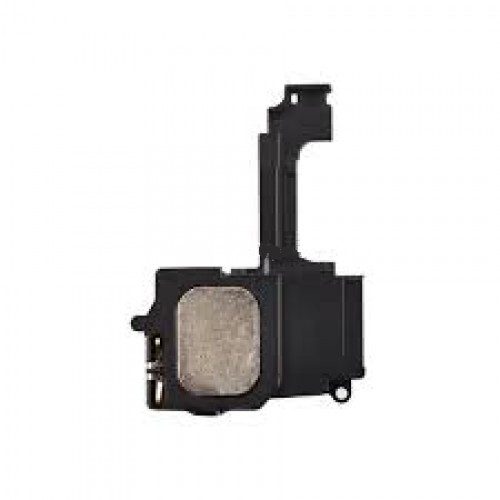

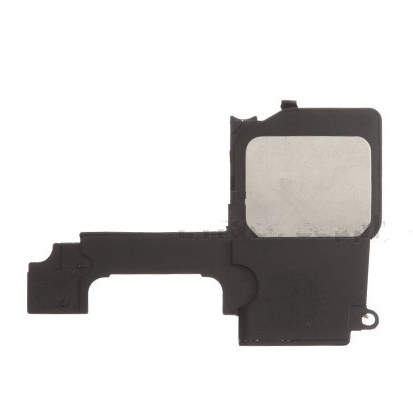

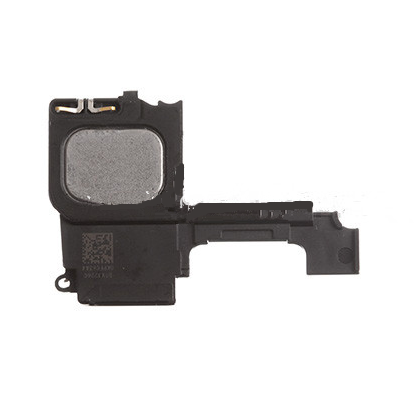

Loudspeaker Replacement Parts for iPhone 5C

This is the replacement spare parts for iPhone 5C Loudspeaker. It is new and original parts for replacement.

LoudSpeaker for iPhone 5C specification

• New an original spare parts for iPhone 5C loudspeaker replacement
• Weight: 10g
• Color: black
• Compatible: for Apple iPhone 5C mobile
• Package Include: 1x  built-in loudSpeaker

How to replace Loudspeaker on iPhone 5C

Step 1.

If your display glass is cracked, keep further breakage contained and prevent bodily harm during your repair by taping the glass.

Lay overlapping strips of clear packing tape over the iPhone's display until the whole face is covered.

Step 2.

Remove the two 3.8 mm Pentalobe screws next to the Lightning connector.

Step 3.

Close the handle on the iSclack, opening the suction-cup jaws.

Place the bottom of your iPhone in between the suction cups, against the plastic depth gauge.

Step 4.

Hold onto your iPhone securely and close the handle of the iSclack to separate the suction cups, pulling the front panel up from the rear case.

The iSclack is designed to safely open your iPhone just enough to separate the pieces, but not enough to damage any cables.

Step 5.

Press a suction cup onto the screen, just above the home button.

Step 6.While holding the iPhone down with one hand, pull up on the suction cup to slightly separate the front panel assembly from the rear case.

With a plastic opening tool, begin to gently pry the rear case down, away from the display assembly, while you pull up with the suction cup.

Step 7.

Pull the plastic nub to release the vacuum seal on the suction cup.

Remove the suction cup from the display assembly.

Step 8.

Lift the home button end of the front panel up to gain access to the connectors near the top of the phone.

Open the display to about a 90º angle, and lean it against something to keep it propped up while you're working on the phone.

Step 9.

Remove the two 1.6 mm Phillips #000 screws securing the metal battery connector bracket to the logic board.

Step 10.

Remove the metal battery connector bracket from the iPhone.

Step 11.

Use the flat edge of a spudger to pry the battery connector up off the logic board.

Step 12.

Remove the following Phillips #000 screws securing the front panel assembly cable bracket to the logic board: 2X 1.3mm screws, 1X 1.7mm screw, 1X 3.25mm screw.

Step 13.

Remove the front panel assembly cable bracket from the logic board.

Step 14.

Use a plastic opening tool to disconnect the front-facing camera and sensor cable connector.

Step 15.

Use a plastic opening tool to disconnect the LCD cable connector.

step 16.

Remove the front panel assembly from the rear case.

step 17.

Use a plastic opening tool to peel the home button spring contact cable up from the speaker enclosure.

step 18.

Remove the following screws securing the speaker enclosure to the rear case: 2X 2.7mm screws, 1X 2.2mm screw.

step 19.

Use the flat end of a spudger to gently pry the speaker enclosure up from the rear case.

step 20.

Remove the speaker enclosure. Be careful not to snag it on the antenna cable.

step 21.

The far right screw hole on the speaker has a contact bracket wrapped around it. Remove it and note the orientation for reassembly.

step 22.

Use a plastic opening tool to lift the sticker from the speaker. Peel up and remove the sticker.
