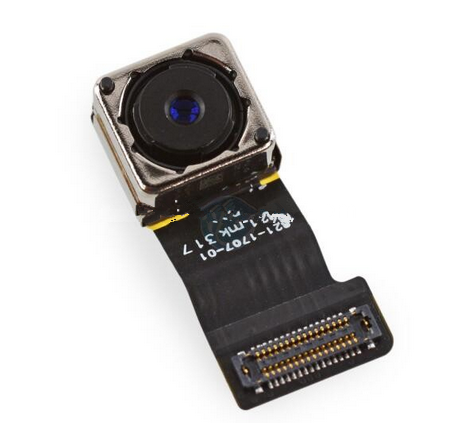

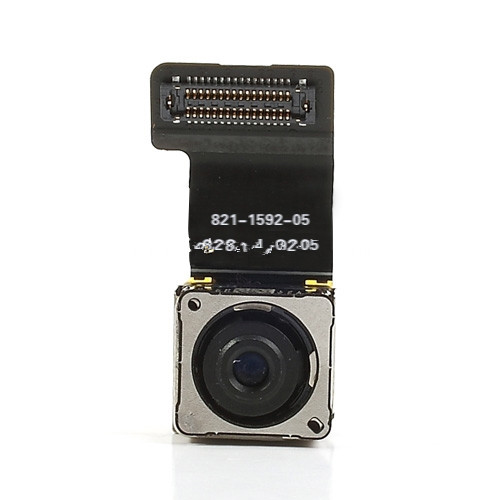

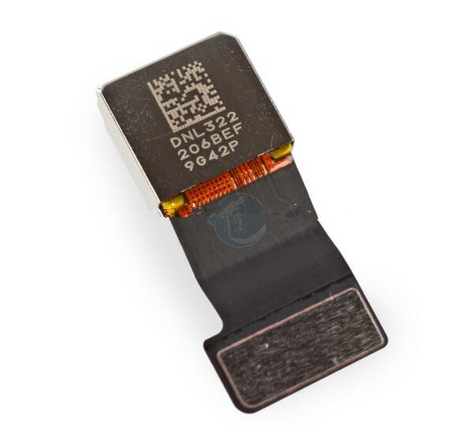

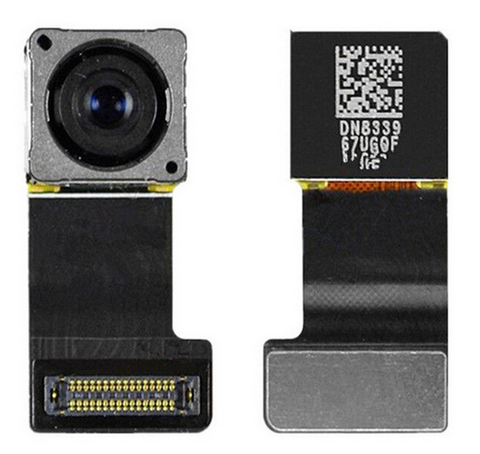

Back Rear Camera Parts for iPhone 5S

Many people like iPhone because it is powerful to make nice picture. If the back rear camera of iPhone 5S is damaged, it is really a crazy thing. In this case, we need to replace the camera with backup spare parts. This is the parts that you need.

• Original Spare parts for iPhone 5S camera replcement
• Quality: new and original
• Standard parts, fit iPhone 5S perfectly
• Weight: 20g
• Compatible: for Apple iPhone 5S

How to replace back camera for iPhone 5S?

Step 1.

If your display glass is cracked, keep further breakage contained and prevent bodily harm during your repair by taping the glass.

Lay overlapping strips of clear packing tape over the iPhone's display until the whole face is covered.

Remove the two 3.9 mm Pentalobe screws from either side of Lightning connector.

Step 3.

Regardless of the tool you use, you need to be sure you pull up the entire display.

If the glass begins to separate from the plastic, as shown in the first image, slide a plastic opening tool between the plastic frame and the metal phone body to pry the metal clips out of the case.

Step 4.

• Close the handle on the iSclack, opening the suction-cup jaws.

• Place the bottom of your iPhone in between the suction cups, against the plastic depth gauge.

• Open the handles to close the jaws of the iSclack. Center the suction cups and press them firmly onto the top and bottom of the iPhone.

Step 5.

Hold onto your iPhone securely and close the handle of the iSclack to separate the suction cups, pulling the front panel up from the rear case.

The iSclack is designed to safely open your iPhone just enough to separate the pieces, but not enough to damage the home button cable.

If you don't have an iSclack, use a single suction cup to lift the front panel:

Press a suction cup onto the screen, just above the home button.

While holding the iPhone down with one hand, pull up on the suction cup to slightly separate the home button end of the front panel from the rear case.

With a plastic opening tool, gently pry the edges of the rear case down, away from the front panel assembly, while you pull up with the suction cup.

Pull the plastic nub to release the vacuum seal on the suction cup.

Remove the suction cup from the display assembly.

• Open the phone just enough to reveal the metal bracket covering the home button cable.

• Do not open the phone too far or you risk damaging the home button cable, or the socket it plugs into. Keep the cable loose-if it is stretched taut, that's too far.

• Use the tip of a spudger to push the bracket free and remove it with tweezers.

Step 10.

Use the flat end of a spudger to snap the front portion of the Touch ID cable bracket down over the cable connector.

Step 11.

Use the tip of a spudger to pry the home button cable connector up out of its socket.

Once the connector has been released, pull the home button end of the assembly away from the rear case, using the top of the phone as a hinge.

Open the display to about a 90º angle, and lean it against something to keep it propped up while you're working on the phone.

Add a rubber band to keep the display securely in place while you work. This prevents undue strain on the display cables.

Remove the two 1.6 mm Phillips #000 screws securing the metal battery connector bracket to the logic board.

Step 14.

Remove the metal battery connector bracket from the iPhone.

Step 15.

Use the flat end of a spudger to gently pry the battery connector up from its socket on the logic board.

Step 16.

Remove the following screws securing the front panel assembly cable bracket to the logic board:

• One 1.7 mm Phillips #000 screw

• One 1.2 mm Phillips #000 screw

• One 1.3 mm Phillips #000 screw

• One more 1.7 mm Phillips #000 screw

Remove the front panel assembly cable bracket from the logic board.

Step 18.

Use the flat end of a spudger to disconnect the front-facing camera and sensor cable.

Step 19.

While still supporting the front panel, disconnect the LCD cable connector.

Step 20.

Finally, disconnect the digitizer cable connector.

Step 21.

Remove the front panel assembly from the rear case.

Step 22.

Using a pair of tweezers, flip the rubber camera cover out of its clip, and toward the outside of the rear case.

Step 23.

Using a plastic opening tool, disconnect the rear-facing camera cable connector from the logic board.

Step 24.

Remove the rear-facing camera from the rear case.

Looking for ideal iPhone 5S Back Camera Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the iPhone 5S Rear Camera are quality guaranteed. We are China Origin Factory of iPhone 5S Camera Parts. If you have any question, please feel free to contact us.
