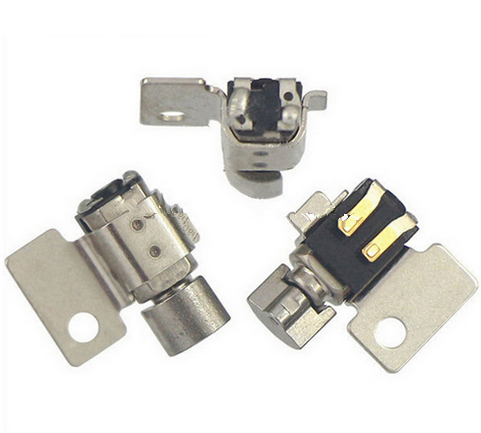

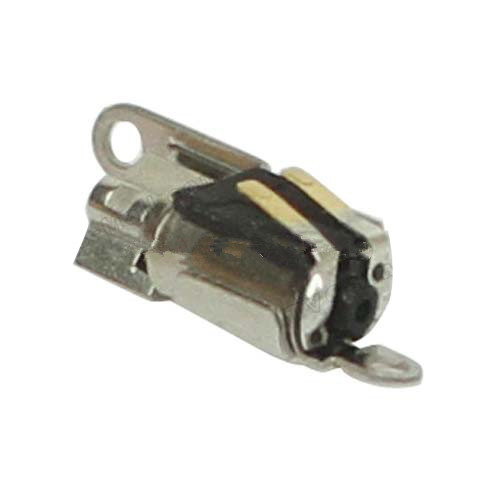

Vibrator Motor Replacement Parts for iPhone 5

The vibrate motor makes your mobile phone shake when receiving a telephone call or message in mute/silent mode. If your mobile phone does not vibrate like it shoud anymore, just replace the motor with this original replacement part.

How to replace Vibrator motor on iPhone 5


Step 1.
If your display glass is cracked, keep further breakage contained and prevent bodily harm during your repair by taping the glass.
Lay overlapping strips of clear packing tape over the iPhone's display until the whole face is covered.
Step 2.
Remove the two 3.6 mm Pentalobe screws next to the Lightning connector.
Step 3.
Regardless of the tool you use, you need to be sure you pull up the entire display.
If the glass begins to separate from the plastic, as shown in the first image, slide a plastic opening tool between the plastic frame and the metal phone body to pry the metal clips out of the case.
Step 4.
Close the handle on the iSclack, opening the suction-cup jaws.
Place the bottom of your iPhone in between the suction cups, against the plastic depth gauge.
The top suction cup should rest just above the home button.
Open the handles to close the jaws of the iSclack. Center the suction cups and press them firmly onto the top and bottom of the iPhone.
Step 5.
Hold onto your iPhone securely and close the handle of the iSclack to separate the suction cups, pulling the front panel up from the rear case.
The iSclack is designed to safely open your iPhone just enough to separate the pieces, but not enough to damage the home button cable.
Peel the two suction cups off your iPhone.
Step 6.
Press a suction cup onto the screen, just above the home button.
Step 7.
While holding the iPhone down with one hand, pull up on the suction cup to slightly separate the front panel assembly from the rear case.
With a plastic opening tool, begin to gently pry the rear case down, away from the display assembly, while you pull up with the suction cup.
Step 8.
Continue to pry up around the sides of the front panel assembly, detaching the clips along the left and right side.
Step 9.
Once the clips have been released on the bottom and sides of the front panel assembly, pull the bottom of the assembly away from the rear case.
Open the display to about a 90º angle, and lean it against something to keep it propped up while you're working on the phone.
Add a rubber band to keep the display securely in place while you work. This prevents undue strain on the display cables.
Step 10.
Remove the following two screws securing the metal battery connector bracket to the logic board:
One 1.8 mm Phillips screw
One 1.6 mm Phillips screw
Step 11.
Remove the metal battery connector bracket from the iPhone.
Step 12.
Use a plastic opening tool to gently pry the battery connector up from its socket on the logic board.
Step 13.
Remove the following screws securing the front panel assembly cable bracket to the logic board:
Two 1.2 mm Phillips screws
One 1.6 mm Phillips screw
Step 14.
Lift the display cable bracket toward the battery to unhook it, and remove it from the iPhone.
Step 15.
Use a plastic opening tool to disconnect the three front panel assembly cables:
Front-facing camera and sensor cable
LCD cable
Digitizer cable
Step 16.
Remove the front panel assembly from the rear case.
Step 17.
Use the exposed clear plastic pull tab to peel the battery off the adhesive securing it to the iPhone.
If you have trouble peeling the battery up, use an iOpener or hair dryer to heat the rear case of the iPhone and soften the adhesive.
The plastic tab is fragile and may break. If your tab breaks before the battery is freed, refer to the following steps.
Step 18.
If the tab breaks off and the battery remains stuck to the rear case, prepare an iOpener or use a hair dryer to heat the rear case directly behind the battery.
Step 19.
If the battery doesn't pry easily out of the case, reheat and reapply the iOpener and try again.
Do not pry at the top portion of the battery, you risk severing the volume control cables.
Step 20.
Remove the battery.
Step 21.
Remove two screws securing the vibrator bracket to the rear case:
Single 2.3 mm Phillips screw
Single 1.7 mm Phillips screw
Step 22.
Remove the vibrator bracket from the rear case.
Step 23.
Remove the 1.6 mm Phillips screw securing the vibrator to the top inside of the rear case.
Step 24.
Remove the vibrator from the rear case.
