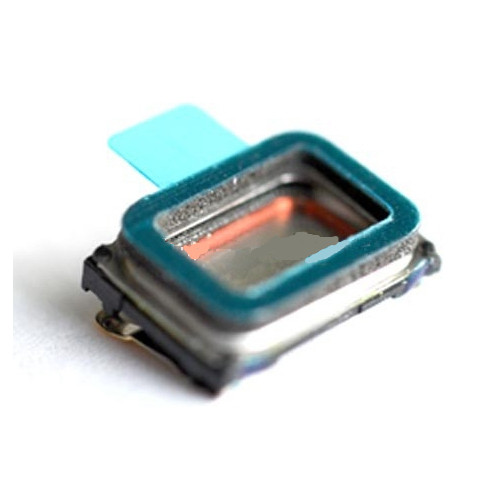

Earpiece Speaker Parts for iPhone 4S

This is 100% new and original Parts for iPhone 4S Earpiece replacement. Not copy or refurbished. Original means top quality. We 100% tested all of them to ensure then work perfectly. It is the perfect replacement parts for iPhone 4S Earpieces Speaker.

Earpieces Speaker Parts for iPhone 4S specification

Weight: 3g

New and original Replacement parts for iPhone 4S

Compatible: for iPhone 4S

Package Include: 1x Replacement Earpiece Speaker

Earpieces Speaker for iPhone 4S function

This is a backup Parts for iPhone 4S, it is special used to replace the damaged Earpiece Speaker




How to Replace Earpiece Speaker with new parts on iPhone 4S?


Step 1
Remove the two 3.6 mm Pentalobe P2 screws next to the dock connector.
Step 2
Push the rear panel toward the top edge of the iPhone.
Step 3
Pull the rear panel away from the back of the iPhone, being careful not to damage the plastic clips attached to the rear panel.
Remove the rear panel from the iPhone.
Step 4
Remove the following screws securing the battery connector to the logic board:
One 1.7 mm Phillips screw
One 1.5 mm Phillips screw.
Use a plastic opening tool to gently detach the battery connector from the socket on the device. Start lifting off the connector from the bottom side, by placing the tip of the tool between the loudspeaker enclosure and the metal cover of the connector.
Step 5
Use a plastic opening tool to pull the pressure contact from underneath the battery connector.
Be careful not to rip off the battery connector socket soldered on the logic board. There are 4 very small soldering points awaiting this mistake!
Step 6
Insert the edge of a plastic opening tool between the battery and the outer case near the bottom of the iPhone.
Run the plastic opening tool along the right edge of the battery and pry up at several points to completely separate it from the adhesive securing it to the outer case.
Step 7
Use the exposed clear plastic pull tab to peel the battery off the adhesive securing it to the iPhone.
Remove the battery.
Step 8
Remove the following screws securing the dock connector cable cover to the logic board:
One 1.5 mm Phillips screw
One 1.2 mm Phillips screw
Remove the metal dock connector cable cover.
Step 9
Use the edge of a plastic opening tool to pry the dock cable up from its socket on the logic board.
Step 10
Peel the dock connector cable off the adhesive securing it to the logic board and the side of the speaker enclosure.
Step 11
Use the edge of a plastic opening tool to pry the cellular antenna cable up from its socket on the logic board.
De-route the cellular antenna cable out from under the metal fingers attached to the logic board.
Step 12
Be wary of the outer plastic ring located on top of the rear camera's flash assembly. It can be easily displaced if not removed during disassembly.
You can use tweezers, a plastic opening tool, or a spudger to remove the outer plastic ring.
Remove the following four screws securing the cable cover to the logic board:
One 2.7 mm Phillips screw
One 2.6 mm Phillips screw
One 1.3 mm Phillips screw
One 1.2 mm Phillips screw
Step 13
Use the edge of a plastic opening tool to pry the cable cover tabs out of their slots cut into the EMI shield on the logic board.
Lift the cable cover from its edge nearest the top and remove it from the iPhone.
Step 14
Use the edge of a plastic opening tool to pry the cable cover tabs out of their slots cut into the EMI shield on the logic board.
Lift the cable cover from its edge nearest the top and remove it from the iPhone.
Use the edge of a plastic opening tool to pry the rear camera connector up from its socket on the logic board.
Be careful not to break any components off the surrounding area on the logic board as you pry upwards.
Remove the rear camera from the iPhone.
Step 15
Use a SIM card eject tool or a paperclip to eject the SIM card and its holder.
This may require a significant amount of force.
Remove the SIM card and its holder.
Step 16
Remove the five cables near the top of the logic board in the following order:
Headphone jack/volume button cable
Front facing camera cable
Digitizer cable
Display data cable
Power button cable (located underneath the headphone jack/volume button cable as shown in the second picture.)
Step 17
Remove the 1.5 mm Phillips screw securing the grounding clip to the logic board near the headphone jack.
Step 18
Use the tip of a spudger to pry the small grounding clip up off the logic board.
Carefully grasp the grounding clip and remove it from the iPhone.
Step 19
Use a small flathead screwdriver to remove the 4.8 mm standoff near the headphone jack.
Step 20
Use the edge of a plastic opening tool to disconnect the Wi-Fi antenna from the logic board.
Step 21
Remove the following screws securing the logic board to the case:
One 2.5 mm Phillips screw near the vibrator motor
One 2.4 mm Phillips screw
One 3.6 mm standoff along the side of the logic board nearest the battery opening.
Step 22
Carefully lift the logic board from the end closest to the speaker enclosure and slide it away from the top edge of the iPhone.
Remove the logic board.
Step 23
Use the edge of a plastic opening tool to carefully pry the metal front facing camera retainer away from the case of your iPhone.
Remove the front facing camera retainer.
Step 24
Remove the front facing camera.
Step 25
Remove the two 1.6 mm Phillips screws securing the power button bracket to the outer case.
Take extra care with the display cables, which can prevent easy access to the right-hand screw. The cables are easily damaged.
Slightly pull the power button bracket away from the outer case.
Step 26
Use a pair of tweezers to remove the power button from the iPhone.
Step 27
Use the edge of a plastic opening tool to pry the earpiece speaker off the adhesive securing it to the outer case. Note that the power button cable is glued to the the case as well, and will need to be pried up.
Use a pair of tweezers to unfold the earpiece speaker from its recess in the outer case.
Step 28
Use the edge of plastic opening tool to gently move the top sensor assembly away from the outer case.
Gently pry the top sensor assembly off the outer case.
Step 29
Lift and remove the power and sensor cable assembly from the iPhone.
Step 30
Use the edge of a plastic opening tool to peel the earpiece speaker off the foam adhesive securing it to the iPhone.
If you wish to reuse the earpiece speaker, try not to tear the foam adhesive that secures it to the iPhone's case.
Remove the earpiece speaker.
