Charging Connector Flex for iPhone 4S Parts

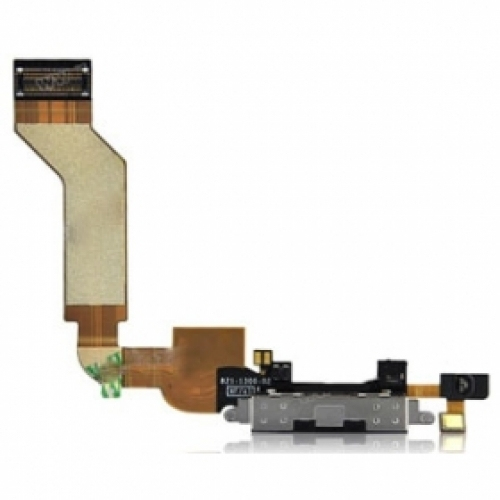

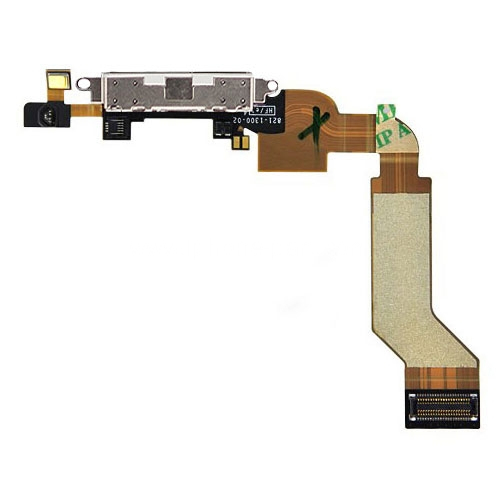

Charging Dock Connector Flex cable for iPhone 4S is the most important repair parts for replacement. It is also called Charging Dock Ribbon or Charging USB Flex cable.  As users re-charge the mobile every day, it is very easy to damage it. Then a back up Charging flex parts for replacement is necessary.

New and original Parts for iPhone 4S Replacement

Weight: 10g
Color: Black and white

100% tested Parts for iPhone 4S, good quality

Compatible: for iPhone 4S

Package Include: 1x Charging Dock Connector Flex Cable

Charging Dock Connector Flex for iPhone 4S function

How to replace the Charge Dock Flex cable on iPhone 4S?


Step 1
Before disassembling your iPhone, be sure it is powered off.
Remove the two 3.6 mm Pentalobe P2 screws next to the dock connector.
Step 2
Push the rear panel toward the top edge of the iPhone.
Step 3
Pull the rear panel away from the back of the iPhone, being careful not to damage the plastic clips attached to the rear panel.
Remove the rear panel from the iPhone.
Step 4
Remove the following screws securing the battery connector to the logic board:
One 1.7 mm Phillips screw
One 1.5 mm Phillips screw.
Use a plastic opening tool to gently detach the battery connector from the socket on the device. Start lifting off the connector from the bottom side, by placing the tip of the tool between the loudspeaker enclosure and the metal cover of the connector.
Step 5
Use a plastic opening tool to pull the pressure contact from underneath the battery connector.
Be careful not to rip off the battery connector socket soldered on the logic board. There are 4 very small soldering points awaiting this mistake!
Step 6
Insert the edge of a plastic opening tool between the battery and the outer case near the bottom of the iPhone.
Run the plastic opening tool along the right edge of the battery and pry up at several points to completely separate it from the adhesive securing it to the outer case.
Step 7
Use the exposed clear plastic pull tab to peel the battery off the adhesive securing it to the iPhone.
Remove the battery.
Step 8
Remove the following screws securing the dock connector cable cover to the logic board:
One 1.5 mm Phillips screw
One 1.2 mm Phillips screw
Remove the metal dock connector cable cover.
Step 9
Use the edge of a plastic opening tool to pry the dock cable up from its socket on the logic board.
Step 10
Peel the dock connector cable off the adhesive securing it to the logic board and the side of the speaker enclosure.
Step 11
Use the edge of a plastic opening tool to pry the cellular antenna cable up from its socket on the logic board.
De-route the cellular antenna cable out from under the metal fingers attached to the logic board.
Step 12
Remove the two 2.4 mm Phillips screws securing the speaker enclosure assembly to the outer case.
Step 13
Remove the small black spacer that was under the Phillips screw near the vibrator.
Step 14
Use a plastic opening tool to lift the speaker enclosure assembly out of the case, being sure not to damage the EMI fingers on the attached Wi-Fi antenna.
Remove the speaker enclosure assembly.
Step 15
If present, remove the small strip of tape covering one of the dock connector screws.
Step 16
Use a plastic opening tool to flip up the retaining flap on the home button ribbon cable ZIF socket.
Step 17
Use a pair of tweezers to pull the home button ribbon cable out of its socket.
Step 18
Carefully pull the rubber microphone holder out of its tube in the bottom edge of the iPhone.
Step 19
Remove the two 1.3 mm Phillips screws securing the dock connector to the case of the iPhone.
Step 20
Remove the tiny rubber spacer near the dock connector.
Step 21
Use the edge of a plastic opening tool to peel the dock connector and its cable off the black plastic case of the iPhone.
Step 22
Pry the dock connector away from its opening at the bottom of the iPhone.
Remove the dock connector.
